The B Cell and Rheumatoid Arthritis Part II: Affinity Maturation of Antibodies, Unlucky Chance Event Leads to Autoantibody (Rheumatoid Factor), and Apoptosis Part II Page 37 |
||||||||||||||||||||||||||||||||||||
Windows Media Player |
QuickTime Media Player |
Real Media Player |
||||||||||||||||||||||||||||||||||
Affinity maturation and the chance event of the occurance of a rheumatoid factor is described. |
Animation: B-cell and affinity maturation Affinity maturation and the chance event of the occurance of a rheumatoid factor is described. |
Animation: B-cell and affinity maturation : Affinity maturation and the chance event of the occurance of a rheumatoid factor is described. |
Animation: B-cell and affinity maturation : Affinity maturation and the chance event of the occurance of a rheumatoid factor is described. |
|||||||||||||||||||||||||||||||||

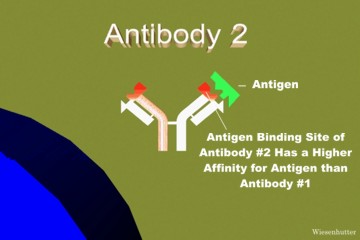

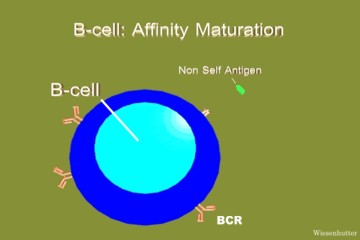

Slide 1: "The B-cell and Affinity Maturation " 360 x 240 pixels 12kb drawn freehand in 3dStudio Max | Slide 2: "The B-cell makes Antibody #1 that Binds to an Antigen with a Given Affinity " 360 x 240 pixels 12kb drawn freehand in 3dStudio Max | Slide 3: "A Somatic Mutation leads to the Production of Antibody #2 with a Higher Affinity for Antigen" 360 x 240 pixels 15kb drawn freehand in 3dStudio Max | ||||||||||||||||||||||||||||||||||
Click Picture or here for larger slides (720 x 480 ) 31kb | Click Picture or here for larger slides (720 x 480 ) 34kb | Click Picture or here for larger slides (800 x 500 ) 45kb | ||||||||||||||||||||||||||||||||||
In brief, pathologic, self-sustaining autoantibodies are felt to develop spontaneously by accident. These deleterious events are made possible because the process of affinity maturation cannot be purposefully directed by the B-cell. Rather, somatic mutations occur randomly, and, under normal circumstances, mutations that lead to antibodies with reduced affinity for the non-self antigen, or antibodies that then react with self-antigen will lead to apoptosis of the responsible B-cells. There is both a T-cell and a B-cell effector mechanism for accomplishing this role. However, in Rheumatoid Arthritis, an unlucky chance event transpires and a B-cell begins producing an autoantibody, with IgG probably the most significant isotype, directed with high affinity to the Fc portion of IgG, i.e. a rheumatoid factor. |
||||||||||||||||||||||||||||||||||||

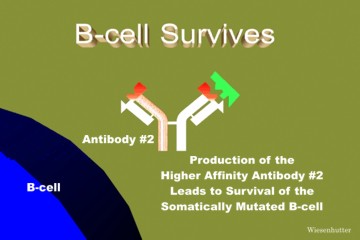

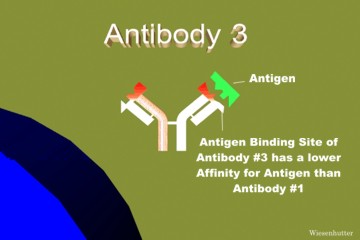

Slide 4: "Production of the Higher Affinity Antibody #2 leads to Survival of the Somatically Mutated B-cell " 360 x 240 pixels 16kb drawn freehand in 3dStudio Max | Slide 5: "Antibody #3 is Produced my Somatic Mutation and has a lower afffinity for antigen than Antibody #1 " 360 x 240 pixels 14kb drawn freehand in 3dStudio Max | |||||||||||||||||||||||||||||||||||

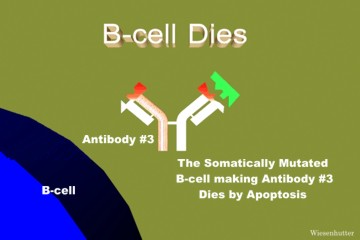

Slide 6: "The Somatically Mutated B-cell making Antibody #3 Dies by Apoptosis " 360 x 240 pixels 13kb drawn freehand in 3dStudio Max | ||||||||||||||||||||||||||||||||||||
Click Picture or here for larger slides (800 x 500 ) 36kb | Click Picture or here for larger slides (800 x 600 ) 117kb | Click Picture or here for larger slides (800 x 600 ) 66kb | ||||||||||||||||||||||||||||||||||
Page 37 | ||||||||||||||||||||||||||||||||||||

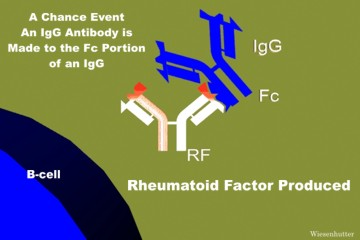

Slide 7: "By Chance, a Somatically mutated B-cell makes an Antibody to the Fc Portion of IgG, a Rheumatoid Factor " 360 x 240 pixels 17kb drawn freehand in 3dStudio Max | ||||||||||||||||||||||||||||||||||||
......Index Go to Previous page .....Go to Next page | ||||||||||||||||||||||||||||||||||||
Click Picture or here for larger slides (800 x 500 ) 113k | ||||||||||||||||||||||||||||||||||||
