Slide 1: "The B-cell Receptor binds to the Fc portion of an IgG, which in turn, Binds non-self Antigen " 360 x 240 pixels 15kb drawn freehand in 3dStudio Max
Slide 2: "The B-cell Presents Non-Self Antigen, via its MHC Class II protein, to a T-cell via the T-cell's TCR " 360 x 240 pixels 16kb drawn freehand in 3dStudio Max

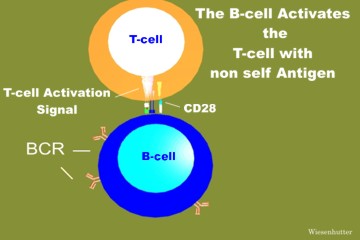

Slide 3: "The B-cell Activates the T-cell with Non-Self Antigen " 360 x 240 pixels 15kb drawn freehand in 3dStudio Max
This B-cell is able to fool T-cells into providing the necessary T-cell help. The B-cell first binds to its antigen, the IgG molecule, which in turn is complexed to a non-self antigen. The non-self antigen is internalized, processed, and presented by the B-cell with MHC class II proteins to the T-cell via the T-cell receptor, in the presence of the appropriate accessory molecules, resulting in activation of the T-cell. The end result of this antigen presentation is production by the T-cell of the necessary helper factors (IL-4, IL-5, IF?). The B-cell lives on.
Page 38

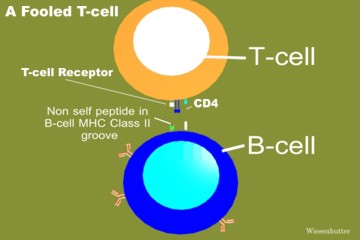

Slide 4: "The T-cell is Fooled into Giving the B-cell the Necessary "Help" " 360 x 240 pixels 16kb drawn freehand in 3dStudio Max
