Normal Joint Structure of the Knees- Several Views   Page 8


Windows Media Player
QuickTime Media Player
Real Media Player


The knee joint is illustrated with several views showing the ligments and menisci.

Animation: Knee Anatomy
: The knee joint is illustrated with several views showing the ligments and menisci.

Animation: Knee Anatomy
: The knee joint is illustrated with several views showing the ligments and menisci.

Animation: Knee Anatomy
: The knee joint is illustrated with several views showing the ligments and menisci.

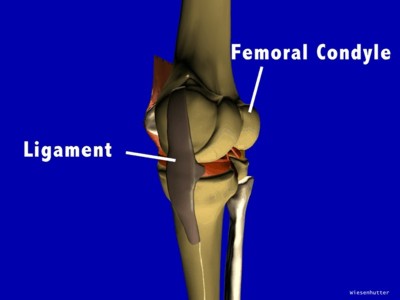

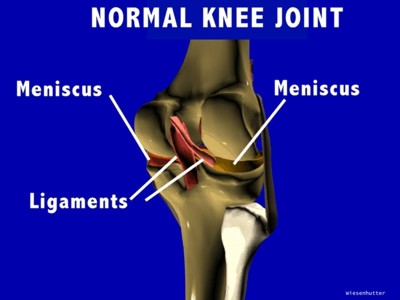

Slide 1: "Normal Joint Anatomy Knee Posterior View " 400 x 300 pixels 22kb Viewpoint Model Worked in 3dStudio Max Slide 2: " Normal Joint Anatomy Knee Medial View "400 x 300 pixels 15kb Viewpoint Model Worked in 3dStudio Max
Click Picture or here for larger slides (800 x 500 ) 60kb Click Picture or here for larger slides (800 x 600 ) 41kb

          The knee joint will be more closely examined. The lateral collateral and posterior ligaments are shown, as well as a portion of the menisci, followed by a view of the more broadened medial collateral ligament. The cruciate ligaments are revealed. Their positioning prevents anterior or posterior dislocation of the knee joint.
           The menisci are specialized fibrocartilaginous structures that are found in a limited number of joints. The menisci act like washers that work together with the ligaments of the knee to help guide and support the joint throughout its complex range of motion since the knee joint is a hinge joint which can rotate. The menisci also bear weight.
       Lastly, the critical congruity of the femoral condyles within the menisci is emphasized. Significant damage to the meniscus in ones youth will result in a very high incidence of osteoarthritis in that knee twenty years later.

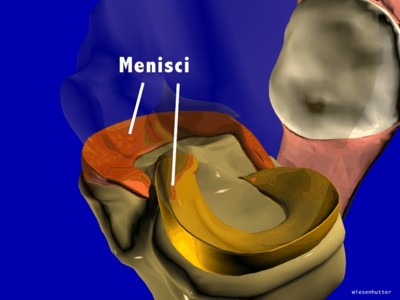

Slide 3: "Normal Joint Anatomy Knee Cruciate Ligaments " 400 x 300 pixels 24kb Viewpoint Model Worked in 3dStudio Max Slide 4: "Normal Joint Anatomy Knee Menisci " 400 x 300 pixels 23kb Viewpoint Model Worked in 3dStudio Max
  Click Picture or here for larger slides (800 x 600 ) 28kb Click Picture or here for larger slides (800 x 600 ) 38kb
