Major Histocompatability Complex, Class I Protein (MHC) Structure, Complementary Peptides, and HLA-B27 Page 44 Larger Slide 8
"Images and Animation in Arthritis and Rheumatism"
Click Picture or here to Return
|
RHEUMATOLOGY: SLIDES & ANIMATIONS |
|||||||||||
Major Histocompatability Complex, Class I Protein (MHC) Structure, Complementary Peptides, and HLA-B27 Page 44 Larger Slide 8 |
||||||||||||
|
|
|||||||||||
"Images and Animation in Arthritis and Rheumatism" |
||||||||||||
|
||||||||||||

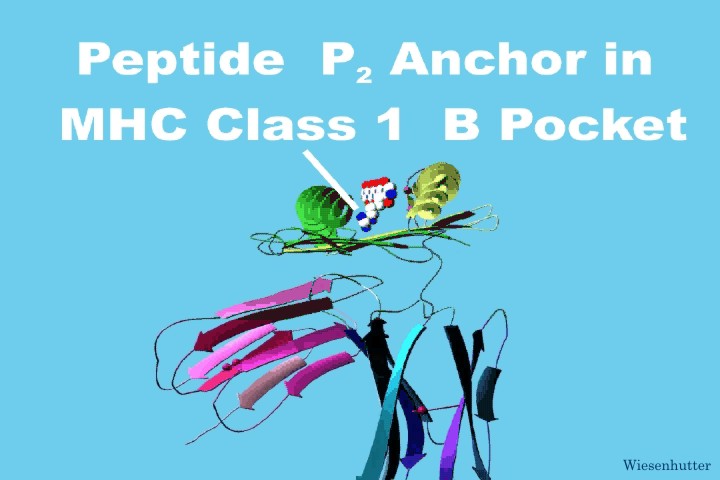

| Slide 8: "A Peptide, which is Complementaric to the MHC Class I Protein, sits in the MHC's Groove: the Arginine Sidechain Situated in the B Pocket Anchors the Molecule" 720x 480 pixels 53kb drawn freehand in 3dStudion Max. Over 10 different images of MHC Class I Proteins were used to create this composition Click Picture or here to Return |
||||||||||||
|
||||||||||||
